Jacksons Jakoustic Commercial and Highway Acoustic Fencing

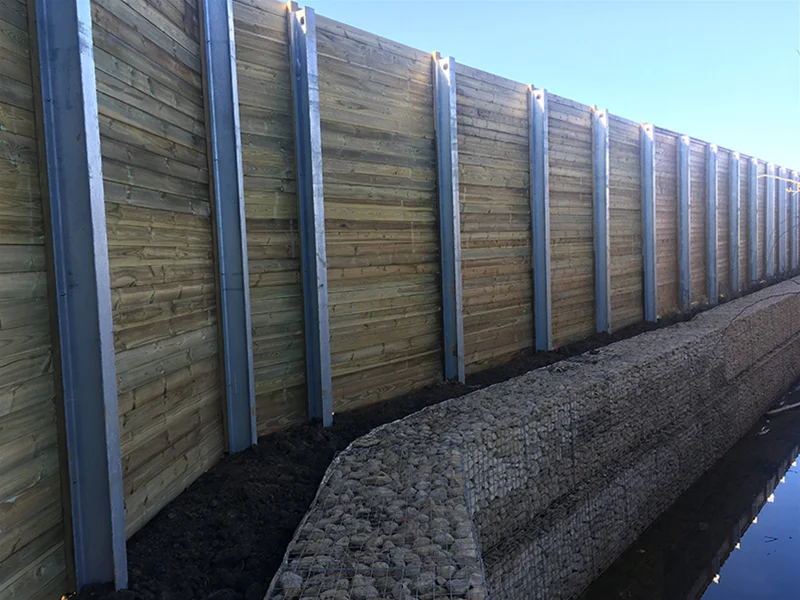

Jakoustic® system has been designed for commercial and highway applications, providing the same level of noise protection as the original Jakoustic® barrier. Jakoustic® 'V' boards are affixed to galvanised steel I-beam posts for additional strength and rigidity, meeting not only the stringent Highways Agency standards BSEN1794-1 and 2, but also prove ideal for application in exposed locations subject to high wind loading. The system can also be offered with capping and counter rails to further enhance its appearance. Posts can even be timber-clad to match. Jacksons Fencing is the first UK manufacturer of timber acoustic barriers who can CE mark both its Jakoustic® Commercial & Highway Reflective system and its Jakoustic® Plus Commercial & Highway Absorptive system as compliant with the requirements of EN 14388:2005 relating to traffic noise reducing devices. Jakoustic Commercial and Highway complies with Highways Sector Scheme 2C for the supply, installation and repair of environmental barriers for infrastructure works and Scheme 4 for preservative treatment of timber. Jakoustic® Highway System includes galvanised steel I-beams with nailing battens to be bolted to the front of the posts. 4.8m long interlocking 'V' boards are then nailed and also fixed with heavy duty screws through the timber boards into the nailing battens. Cover boards are required on every steel posted installation.
Product Information
- Available as Jakoustic® reflective barrier or with Jakoustic® Plus - Absorptive Layer (see "Jakoustic® Plus - Absorptive Layer")
- Up to 28dB* noise reduction
- Type tested by BSI to BS EN 14388-2005
- Galvanised steel I-beam post
- Complies with Highways Sector Scheme 2C for the supply, installation and repair of environmental barriers for infrastructure works and Scheme 4 for preservative treatment of timber.

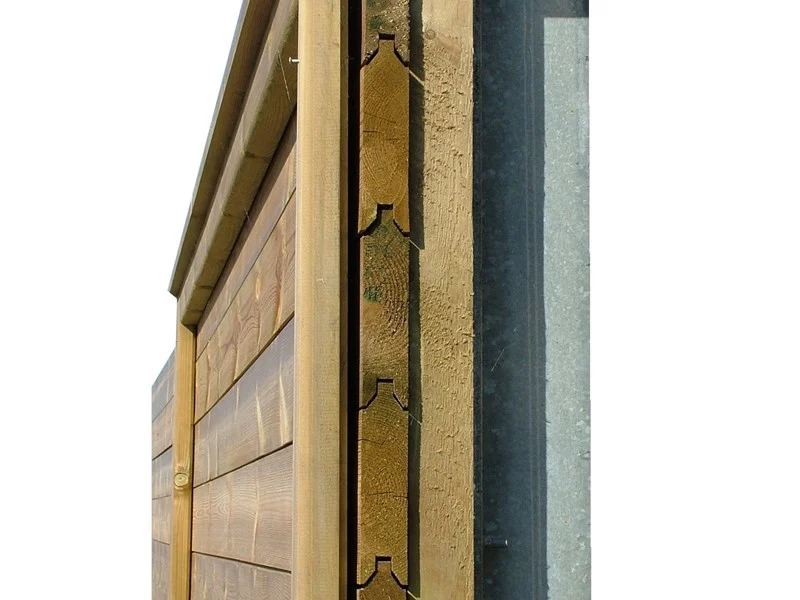

- 34mm Timber interlocking "V" boards
- Can accommodate changes in level or profile
- Optional timber capping, counter rails and post cladding available
- Anti-climb and scale design
- Matching pedestrian, swing and tracked sliding gates
- High privacy barrier
- 25-year Jakcure® guarantee
Related Products
Other Specialist options
Jacksons Jakoustic PLUS | Absorptive Acoustic Fencing
Jakoustic® Plus acoustic fencing adds an absorptive layer on one side of the fence made up of a mineral Rockwool fibre and protective membrane. Ideal for applications where a noise source is in a tight confined area surrounded by other reflective surfaces.
Jacksons Jakoustic | Reflective Acoustic Fencing
The Jakoustic® reflective barrier reflects the noise away using heavy section planed timber boards with a special profile that has been carefully developed. Boards are constructed in such a way that eliminates gaps that sound can easily travel through. Up to 28 dB* in noise reduction. Unique tuning fork design posts Attractive timber structure with a planed finish throughout Anti climb design and scale design High privacy barrier Special fixings clamp the acoustic boards between posts Can accommodate changes in level or profile Complete with capping and counter rail Up to 28 dB in noise* Category B3 rating 34mm thick "V" boards Matching pedestrian, swing and tracked sliding gates 25-year Jakcure® guarantee *Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793-2:1998 Category = B3 Laboratory sound reduction 28 dB Superficial mass 25kg/m²
