- Fence panel height: 1.215m above finished ground level
- Fence Panel width: 2m wide overall
- Uprights/posts: 50 x 25 x 2mm RHS (end posts are drilled with 2 holes for bolting to the next panel)
- Rails: 5 x 19mm diameter CHS
Panels are bolted together using 2 x M8 x 65 Coach bolts (804100). If a panel needs reducing to size at the end of a run, a 50x50mm SHS end post is required (079801), the cut rails are then fed into the end post with uneven cuts hidden inside post (no fixings required).

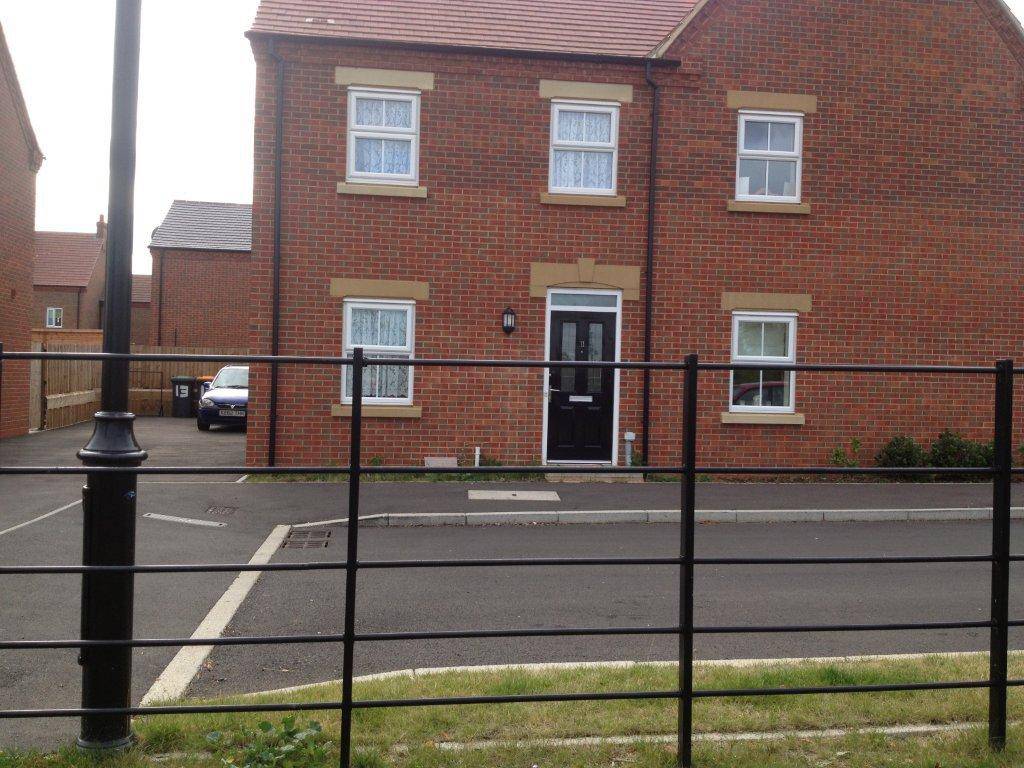

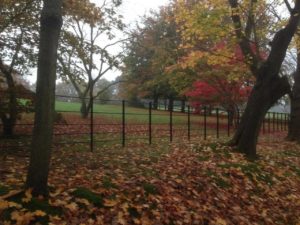

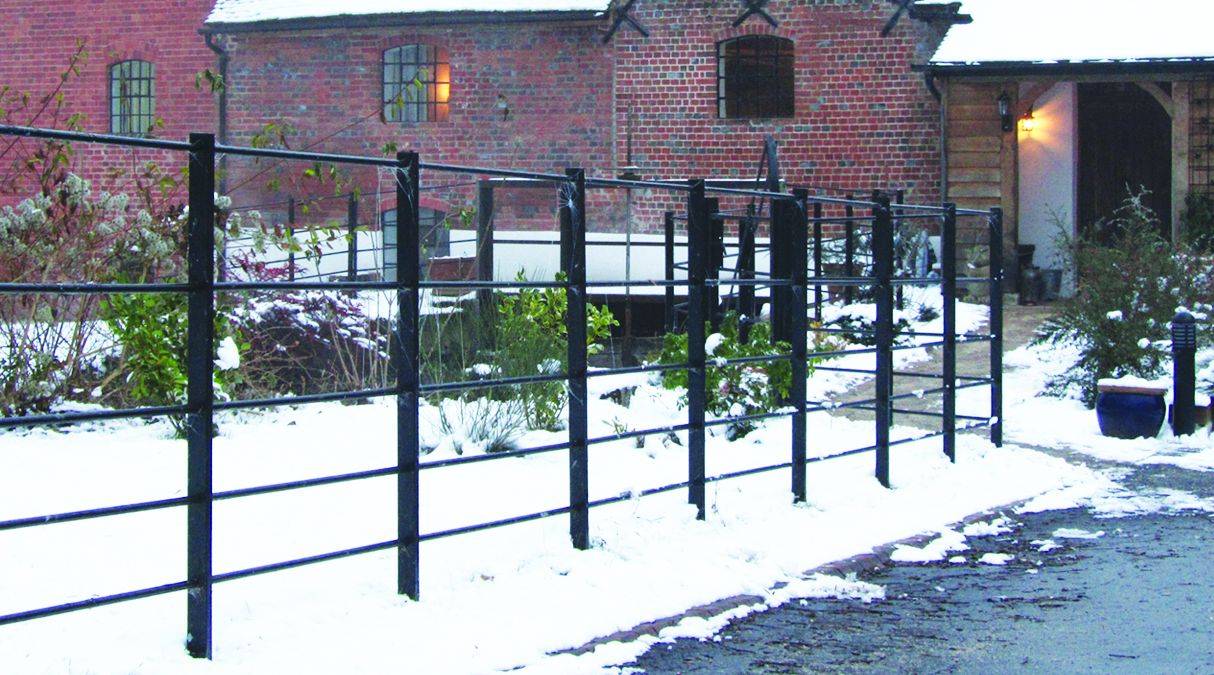

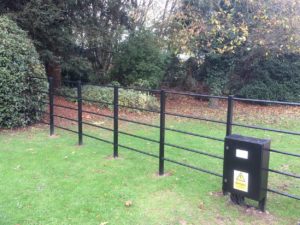

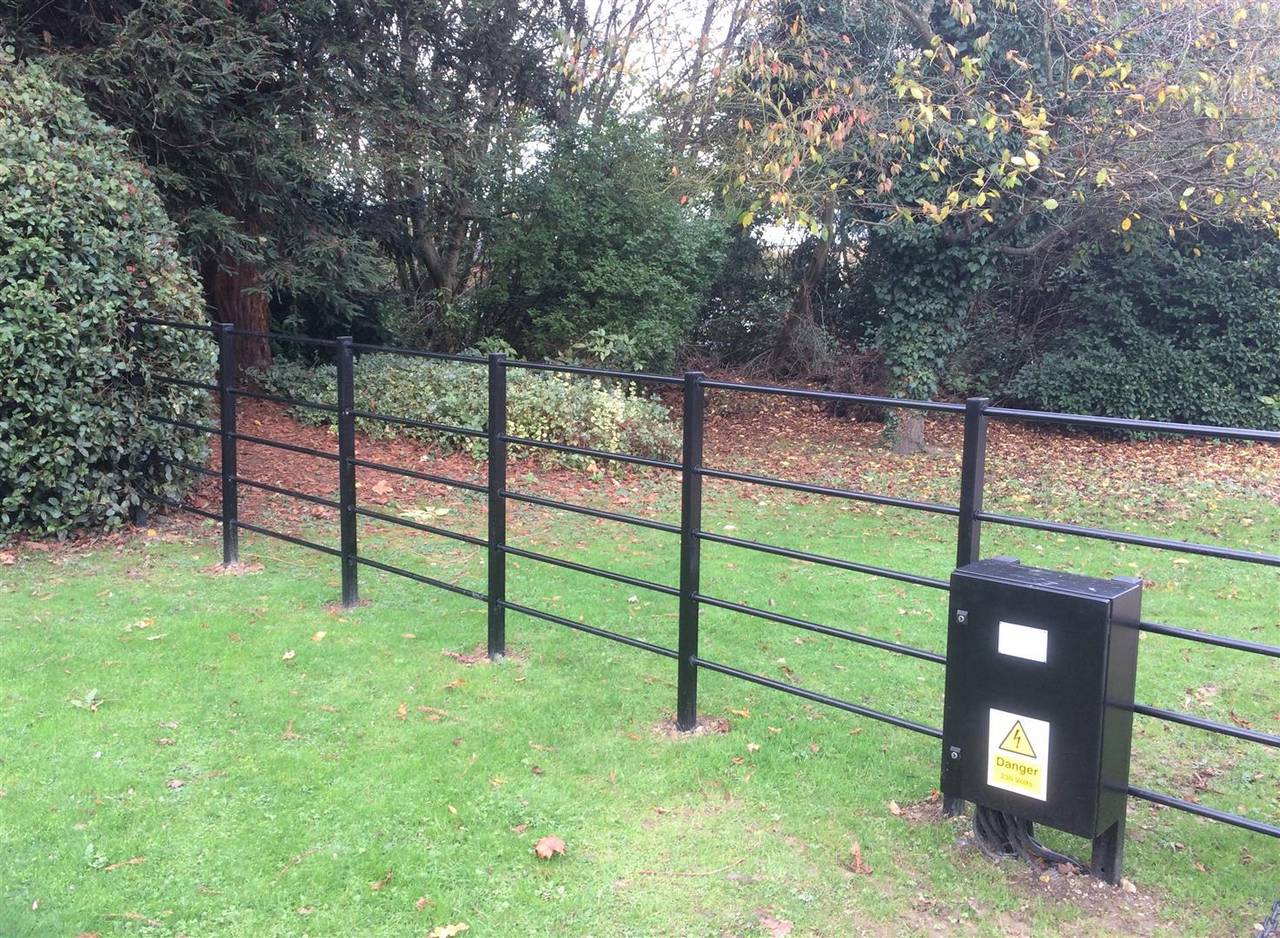

Estate Fencing And Gates

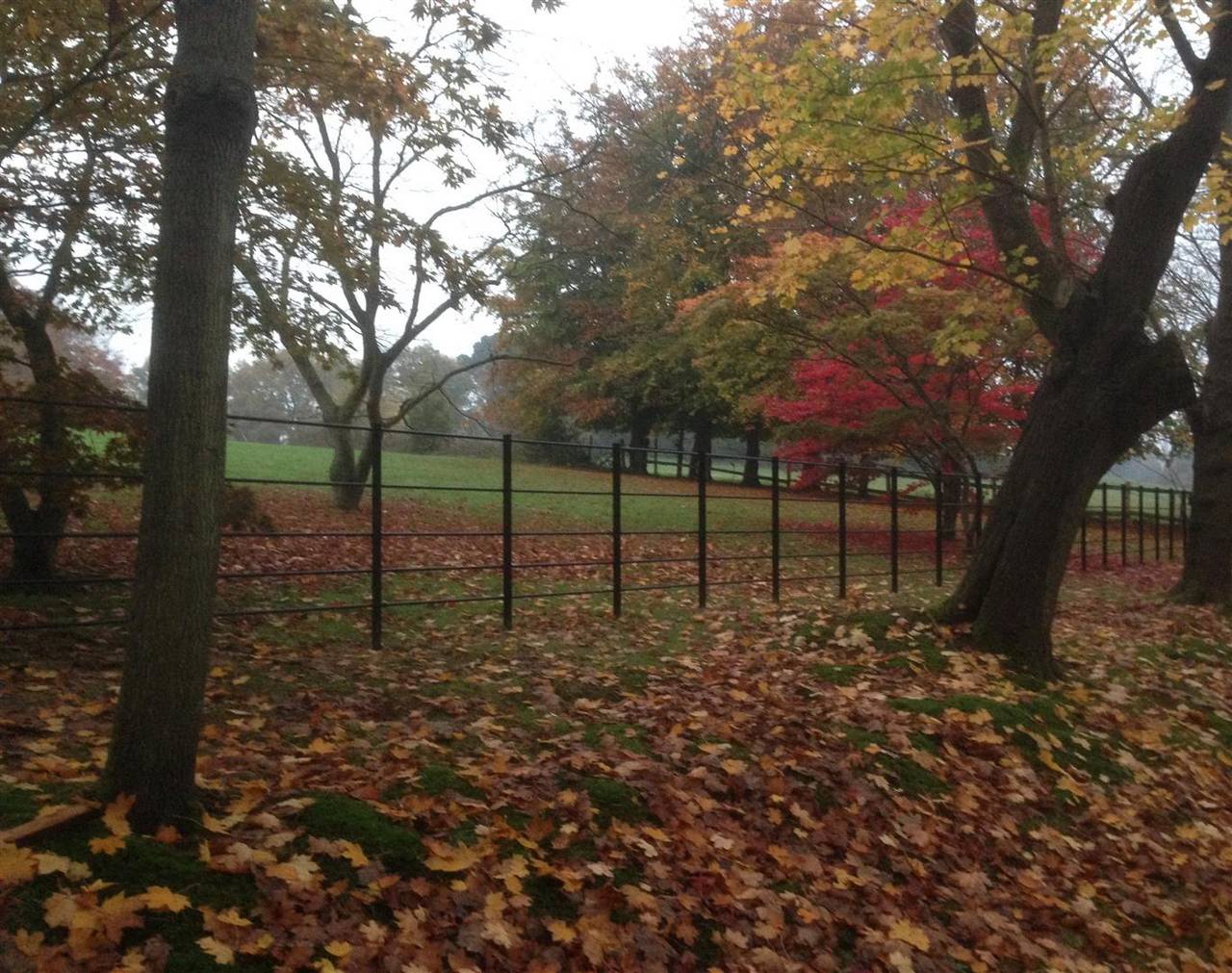

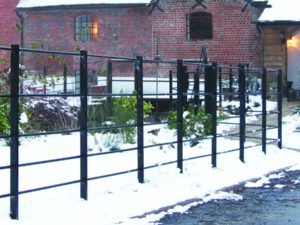

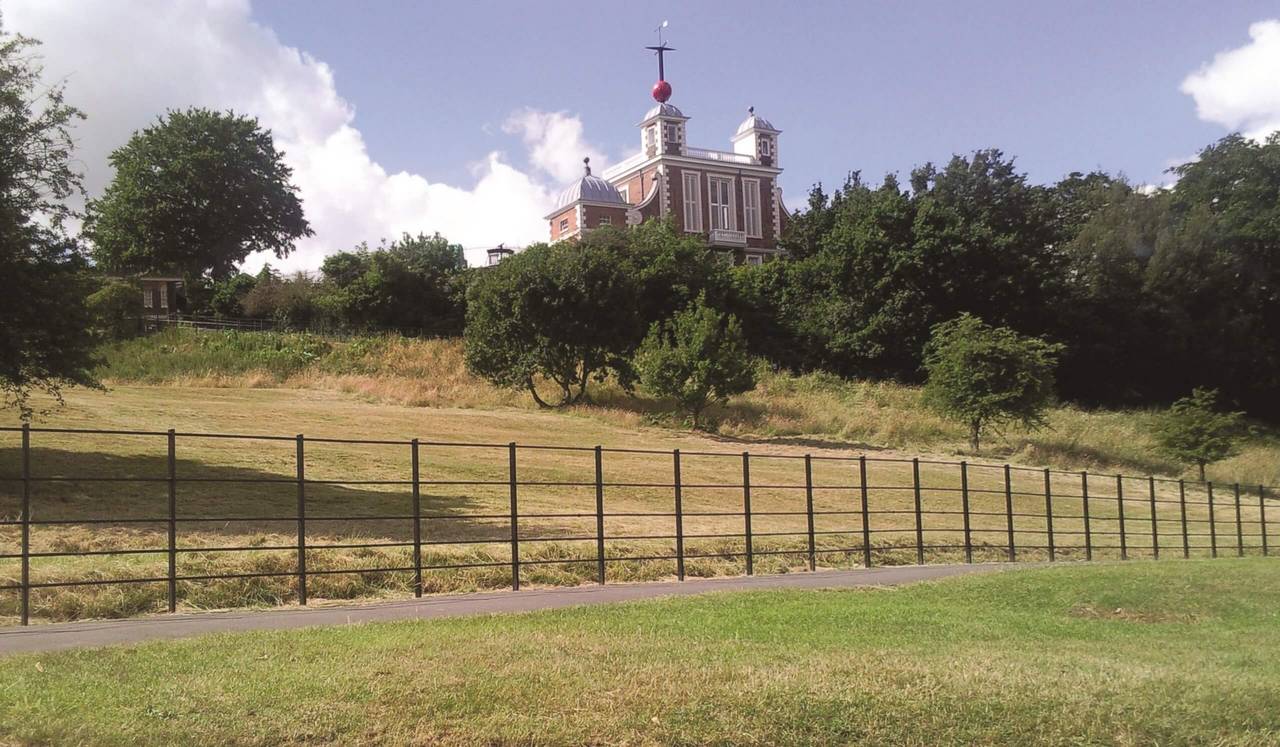

Estate fencing has a traditional railing style that everyone associates with country parks and rural estates, it’s been around for years, but can look rough, ready and ancient. Originally estate rails and posts were manufactured from flat bar, which is prone to bending and can be heavy.

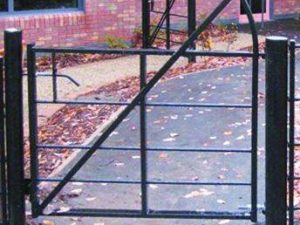

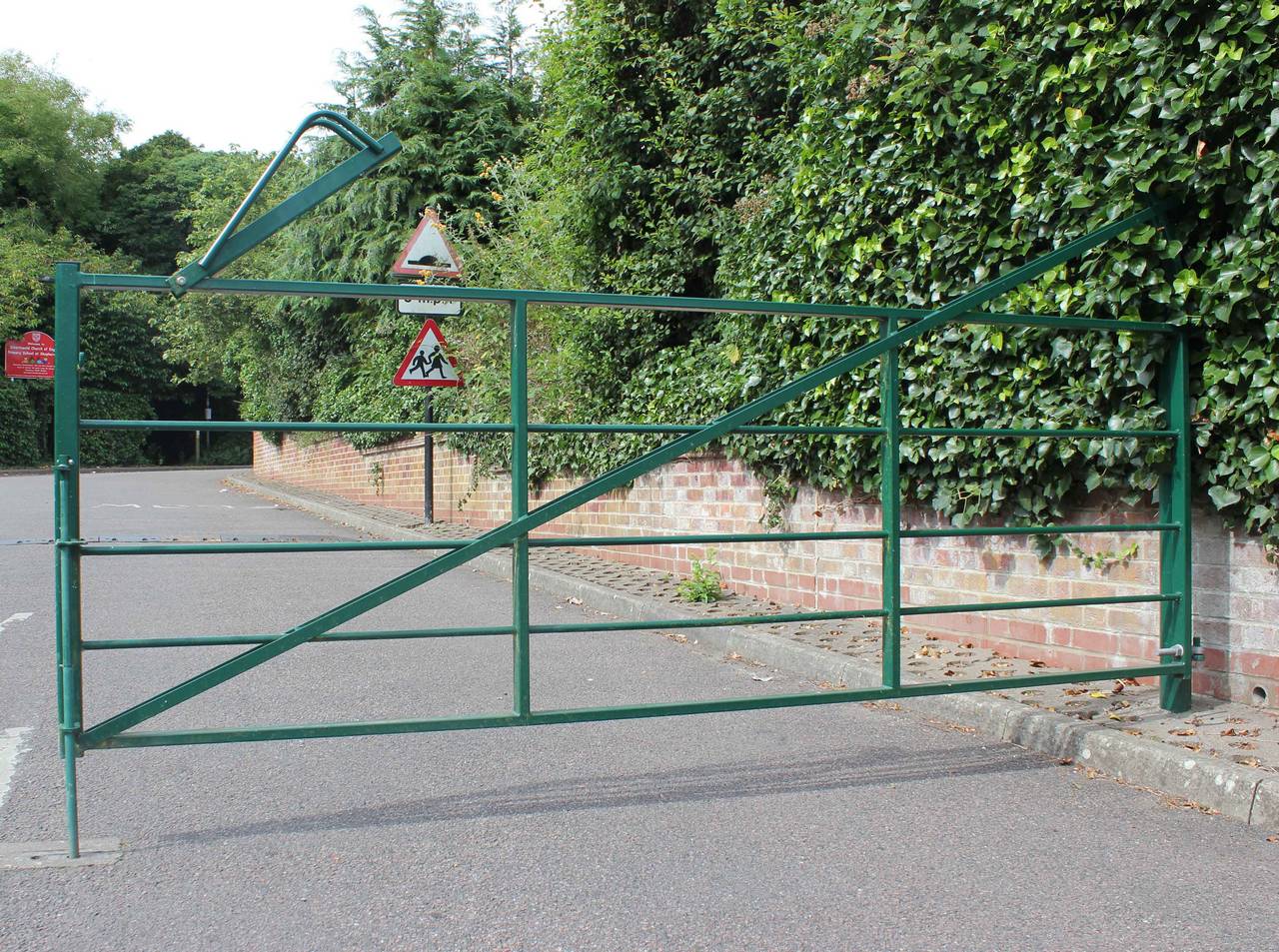

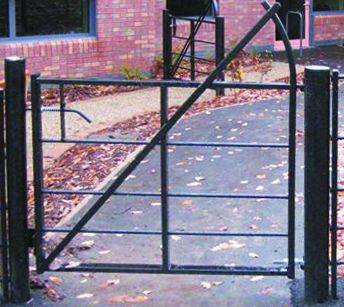

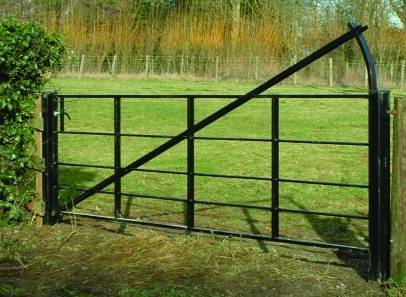

Estate Railing Gates
Manufactured from the same high quality materials and with all the same benefits as the estate railings, these elegant estate gates is ideal for use with the estate railings or in the place of any metal field gate. The graceful crook with the diagonal strengthening brace adds an attractive feature to the gate
All products on this page come galvanised as standard.
