Jacksons Jakoustic Commercial and Highway Acoustic Fencing

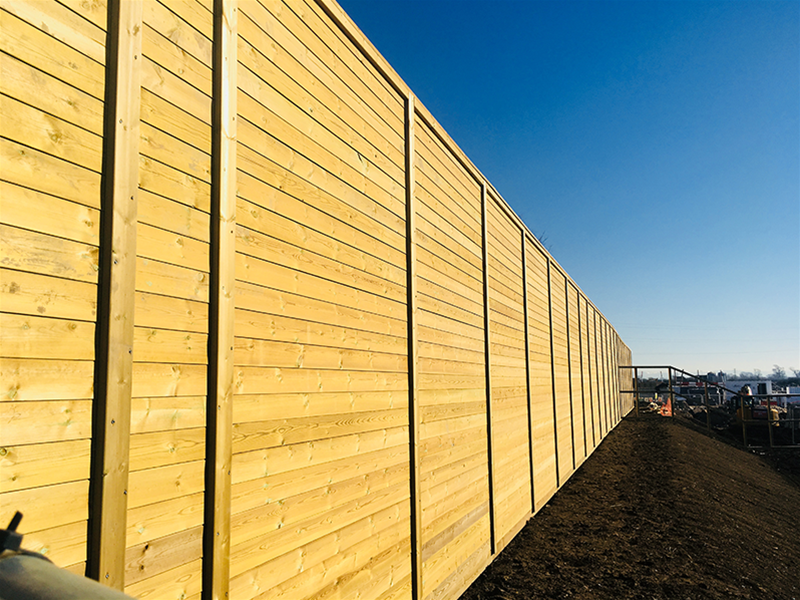

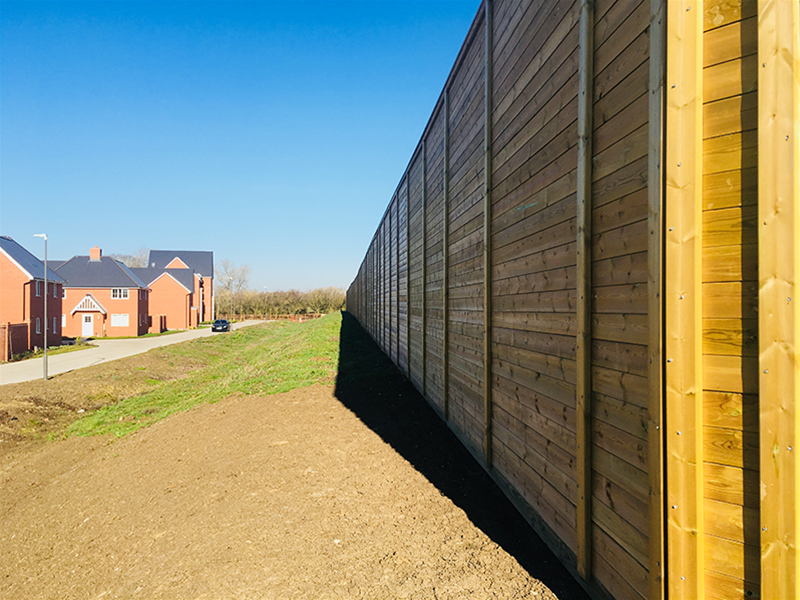

Jakoustic® system has been designed for commercial and highway applications, providing the same level of noise protection as the original Jakoustic® barrier.

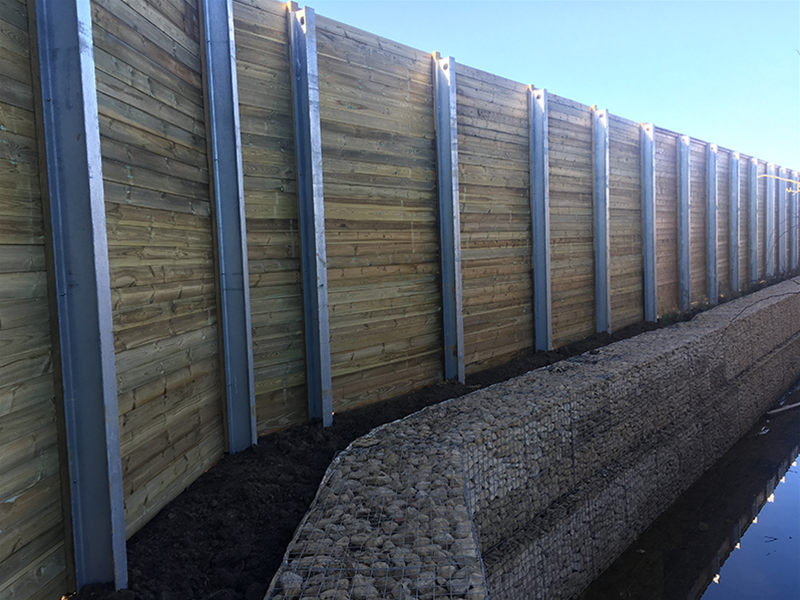

Jakoustic® ‘V’ boards are affixed to galvanised steel I-beam posts for additional strength and rigidity, meeting not only the stringent Highways Agency standards BSEN1794-1 and 2, but also prove ideal for application in exposed locations subject to high wind loading. The system can also be offered with capping and counter rails to further enhance its appearance. Posts can even be timber-clad to match.

Jacksons Fencing is the first UK manufacturer of timber acoustic barriers who can CE mark both its Jakoustic® Commercial & Highway Reflective system and its Jakoustic® Plus Commercial & Highway Absorptive system as compliant with the requirements of EN 14388:2005 relating to traffic noise reducing devices.

Jakoustic Commercial and Highway complies with Highways Sector Scheme 2C for the supply, installation and repair of environmental barriers for infrastructure works and Scheme 4 for preservative treatment of timber.

Jakoustic® Highway System includes galvanised steel I-beams with nailing battens to be bolted to the front of the posts. 4.8m long interlocking ‘V’ boards are then nailed and also fixed with heavy duty screws through the timber boards into the nailing battens. Cover boards are required on every steel posted installation.

Product Information

  • Available as Jakoustic® reflective barrier or with Jakoustic® Plus – Absorptive Layer (see “Jakoustic® Plus – Absorptive Layer”)
  • Up to 28dB* noise reduction
  • Type tested by BSI to BS EN 14388-2005
  • Galvanised steel I-beam post
  • Complies with Highways Sector Scheme 2C for the supply, installation and repair of environmental barriers for infrastructure works and Scheme 4 for preservative treatment of timber.

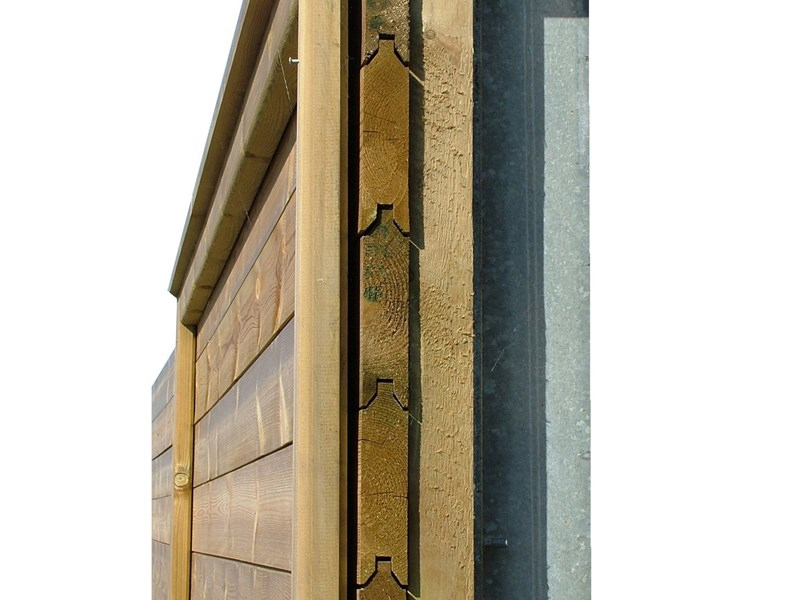

  • 34mm Timber interlocking “V” boards
  • Can accommodate changes in level or profile
  • Optional timber capping, counter rails and post cladding available
  • Anti-climb and scale design
  • Matching pedestrian, swing and tracked sliding gates
  • High privacy barrier
  • 25-year Jakcure® guarantee

Applications

  • Highways
  • Commercial Properties
  • Construction sites
  • Industrial
  • Railways
  • Residential
  • Sports venues
  • Sites subject to high wind loading
  • Where a barrier height of up to 7.0m is required
  • Where a barrier with good security performance is required

*Jakoustic® Commercial and Highway barrier certified laboratory results:
Rating according to BS EN 1793-2:1998 (Category B3)
BS EN 1794-1:2003, Annex A,B,C & E

Designed in accordance with BS EN 1794-2:2003 (Detailed compliance statements available) Jakoustic Highway Laboratory sound reduction 28dB Superficial Mass 25kg/m²

**Some highway applications need specific approvals, please discuss your requirements with an acoustic sales advisor

Post Options

  • Overlength steel I beam posts for fence heights up to 5m
  • Base plated steel I beam posts to bolt down to concrete base foundations

Finishes

  • Jakcure® treated timber as standard
  • Posts hot dipped galvanised to BS EN ISO 1461 as standard
