Jacksons Jakoustic | Reflective Acoustic Fencing

The Jakoustic® reflective barrier reflects the noise away using heavy section planed timber boards with a special profile that has been carefully developed. Boards are constructed in such a way that eliminates gaps that sound can easily travel through. Up to 28 dB* in noise reduction.

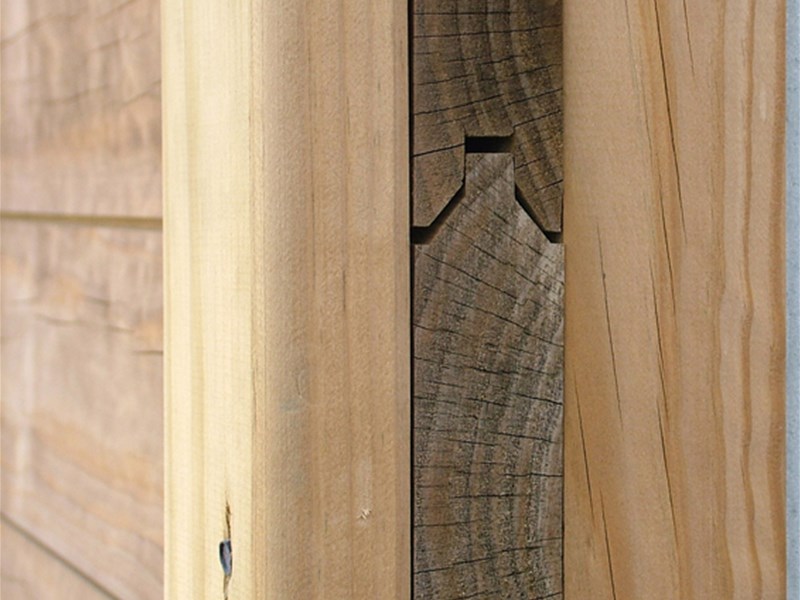

  • Unique tuning fork design posts
  • Attractive timber structure with a planed finish throughout
  • Anti climb design and scale design
  • High privacy barrier
  • Special fixings clamp the acoustic boards between posts
  • Can accommodate changes in level or profile
  • Complete with capping and counter rail
  • Up to 28 dB in noise*
  • Category B3 rating
  • 34mm thick “V” boards
  • Matching pedestrian, swing and tracked sliding gates
  • 25-year Jakcure® guarantee

*Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793-2:1998 Category = B3 Laboratory sound reduction 28 dB Superficial mass 25kg/m²

Applications

  • Residential properties
  • Commercial properties
  • Construction sites
  • Sports venues

Specifications

  • Heights available with timber tuning fork posts, for general applications away from hills and coasts.
  • For barrier heights 2.1m – 4.0m the timber posts are reinforced with a steel spur post, coated black.
Height (mm)Post Centres (mm)
Spur Post (mm)
Post Length (mm)
20002410N/A2900
2500241020003400
3000241025003900
3500241027004400
4000241033004900

Steel posts are also available – size subject to site conditions – See “Jakoustic® Commercial & Highway” section

Post Options

  • Timber tuning folk posts over length set in concrete as standard
